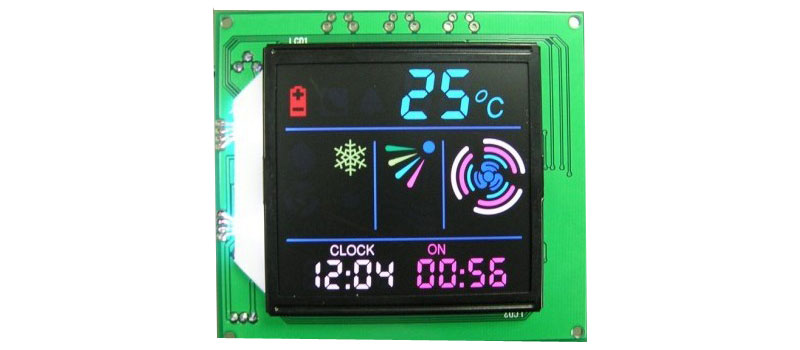

Graphic type FS-LCD

Description：

Graphic type FS-LCD is the first phase products of FS-LCD technology; we have applied this patent product to Flight Information Display in airport, which is the first color FS LCD for public information display in the world. It has got great reputation in LCD industry, features on high quality color display, super wide view angle, high brightness, low power consumption(eco-friendly) and cost saving. Its technology principle is superior to the traditional one, using a series of RGB backlight to show the image color instead of traditional color filter.More and more airport, metro or station hall will use our FS-LCD to upgrade their information display.

High brightness (can be used in strong illumination occasion)
Fresh color (more and much clearer with bland display)
High speed response (never leave traces at any speed)
Wide viewing angle(can identify active contents distinctly at any view direction)
High contrast (more darkness compared with traditional LED)
Low power consumption (1/5 of traditional LED)

Part number
SCLM-P101

SCLM-P107

Display content
　24(W) × 24(H)

Outline Size
　96mm(W)×132mm(H)

　96mm(W)×132mm(H)

View Area
　93mm(W)×104mm(H)

　93mm(W)×104mm(H)

Display Color 8 Colors(Red、Green、Blue、Yellow、Cyan、Purple、Black、White)

Contrast
　Above 100:1

Viewing Direction
　Left and Right: ±70 °, Top and bottom: ±70 °

Response Time
　4ms(25℃)

Backlight
　R、G、B LED

Drive Method
　Static

OperatingTemperature
　0～+50℃

Storage Temperature
　-10℃～+60℃

Power Supply
　AC100V　50/60Hz

* Above specification are subject to change without further notice.

Flight Information Display in Narita International Airport of Japan
